cellulose depth filter element
Introduction
The CJC alternative cellulose filter element is a high-efficiency depth-type filtration solution designed to fully replace original CJC filter inserts used in fine filtration systems such as the HDU series.
The filter media is made of moulded cellulose using high-purity wood pulp imported from North America, ensuring low impurity content, excellent fiber structure, and stable filtration performance.

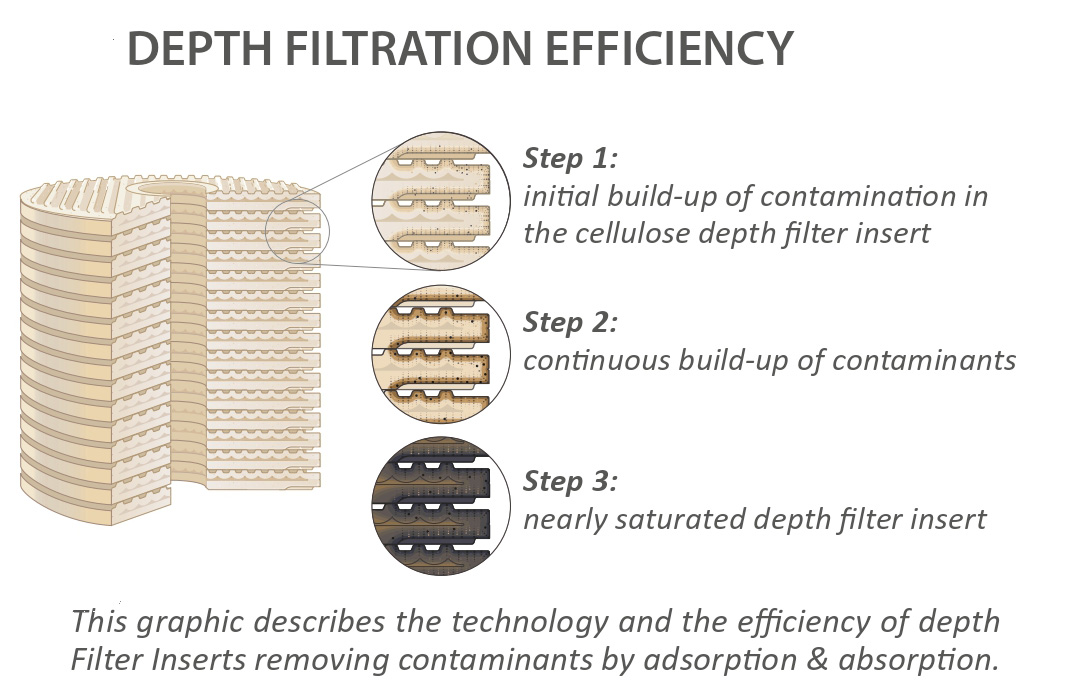

With its unique bonded disc design, the filter provides a large effective filtration area and exceptionally high dirt holding capacity (DHC), resulting in extended service life and reduced operating costs.
Our filter elements are widely used across industries and are proven to be a reliable and cost-effective alternative to original CJC® filters.
Product Specifications
Filter Media: Cellulose (high-purity wood pulp)
Filtration Efficiency:
*≥98.7% removal of particles ≥3 μm
*Up to 50% removal of oxidation by-products (~0.8 μm)
Contaminant emoval (4-in-1): Particles, Water, Acidity (TAN), varnish & sludge
Design: Modular bonded disc structure
Product Advantages
High Dirt Holding Capacity
Made from premium cellulose material with high porosity, enabling large contaminant retention and longer service life.
Stable Filtration Performance
Advanced manufacturing ensures uniform fiber structure, minimizing damage during processing and maintaining consistent filtration accuracy.
High Material Quality
Using imported North American wood pulp, the filter provides:
Better fiber integrity
Lower impurity content
Reduced fiber shedding
Strong Structural Integrity
Tested according to ISO standards, ensuring no structural defects affecting filtration performance.
Strict Quality Control
Full inspection from raw material to finished product guarantees stable and reliable quality.

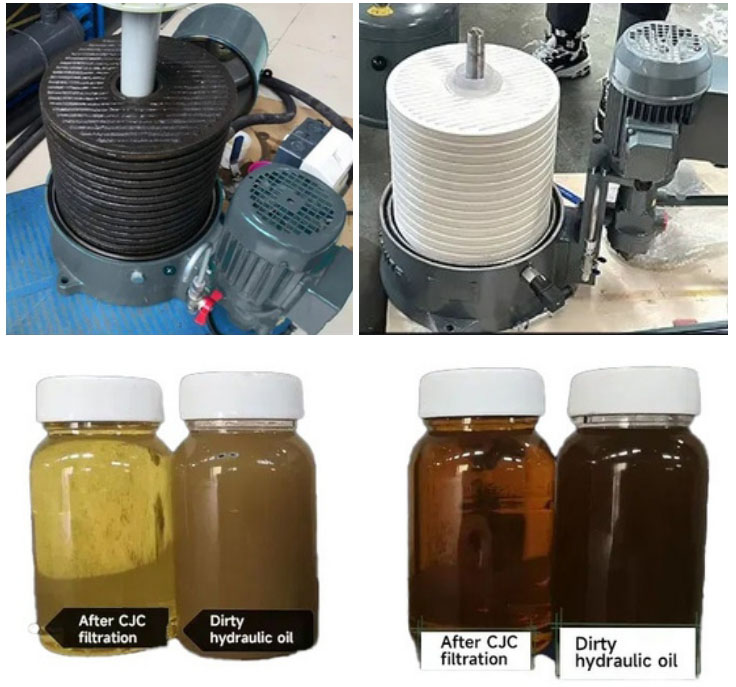

Comparison before and after filter use

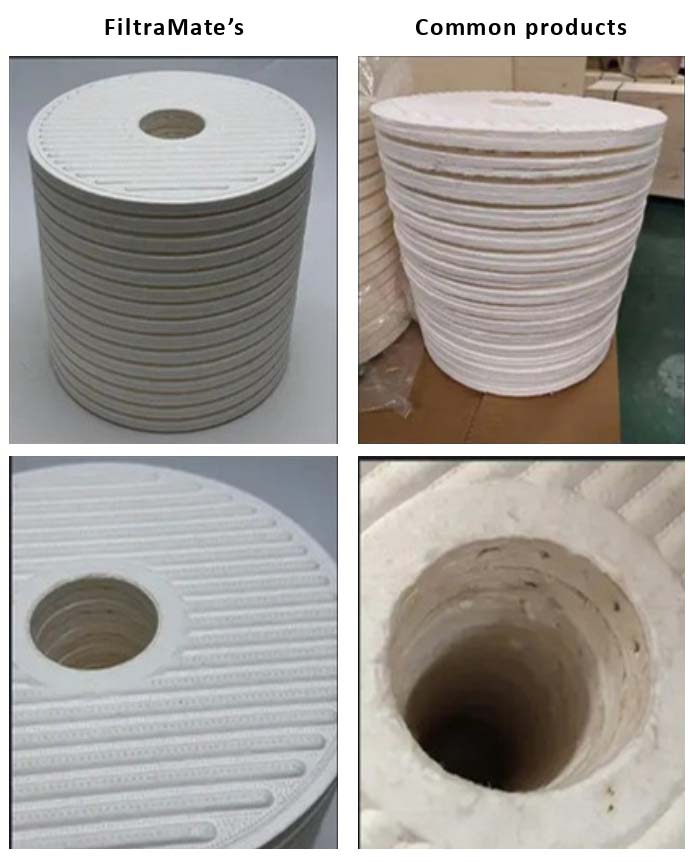

Performance comparison
Common alternative filters in the market were evaluated against FiltraMate's one.
Maintenance Recommendations
To maintain optimal filtration performance:
Replace filter elements at least once per year
Replace earlier if pressure drop reaches 1.8 bar
Do not extend service life beyond recommended period
Accumulated contaminants such as oxidation products, acids, and varnish will reduce filtration efficiency over time.
Regular replacement ensures stable system performance and prevents equipment damage.
Applications
The filter elements can applied for oil types including Hydraulic oil, Gear oil, Lubricating oil, Engine oil, Turbine oil, Honing oil, Rolling oil, etc. Industry applications usually include as following:
Metallurgy
Hydraulic systems of rolling mills and continuous casting machines
Petrochemical Industry
Oil refining, chemical processing, and fluid purification systems
Power Generation
Turbine oil systems, lubrication systems, and control systems
Marine & Heavy Equipment
Engine oil, hydraulic oil, and lubrication oil filtration
Machinery & Manufacturing
Injection molding machines, mining equipment, and lubrication systems
Textile & Air Systems
Polyester processing, compressed air oil-water separation
Electronics & Pharmaceutical
Pre-treatment filtration for purified water and process fluids
