Product Overview

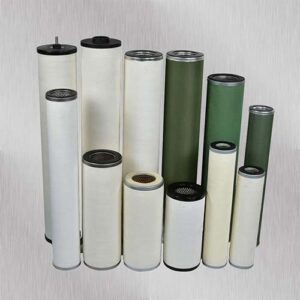

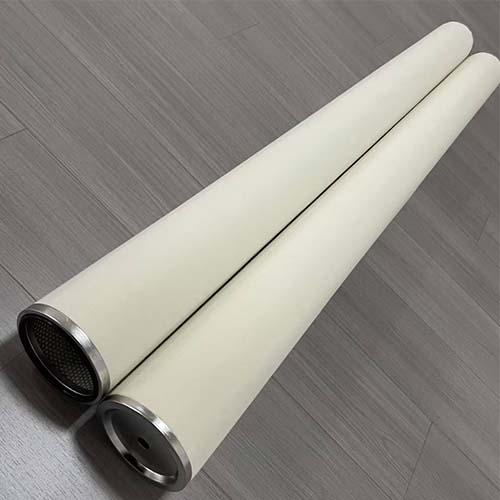

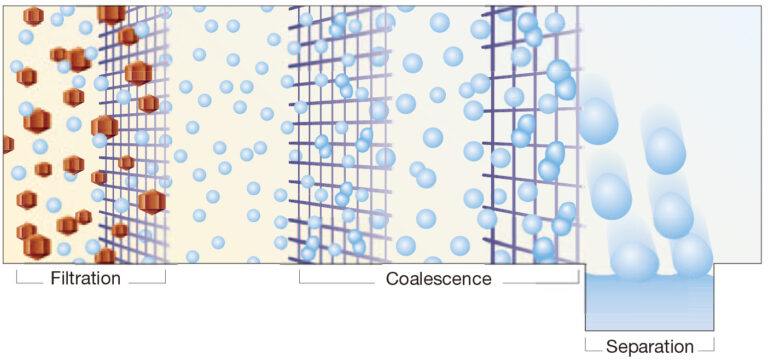

The Coalescence Filter Element is designed for gas-liquid and liquid-liquid separation, effectively removing fine liquid droplets or mist from gas or liquid streams. It works through a multi-stage process of capture, coalescence, and drainage, ensuring efficient impurity removal and clean output.
The gas-liquid coalescence filter captures and merges small liquid droplets suspended in gas, while the liquid-liquid coalescence filter separates immiscible liquids such as oil and water. Depending on the working condition, specialized metal or non-metal filter media can be selected to achieve optimal separation efficiency and durability.
Filter Material

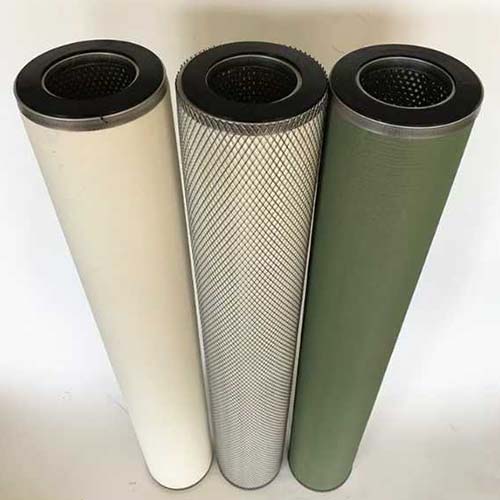

• Coalescence Filter Element: Non-metal composite materials; metal options available for special service
• Separation Filter Element: Specially treated metal materials; customized materials available upon request
Key Features
• Continuous dynamic coalescence process ensures stable and efficient filtration
• Specially treated filter media for enhanced droplet merging and separation
• Configurable solutions for different operating environments and requirements
• High resistance to temperature, pressure, and chemical corrosion
Technical Specifications
Gas-Liquid Coalescence Filter:
• Filtration Efficiency: 99.999% for 0.3 μm
• Max Differential Pressure: 0.5 MPa
• Max Operating Temperature: 120°C
Liquid-Liquid Coalescence Filter:
• Filtration Precision: ≤30 ppm (depends on service conditions)
• Max Differential Pressure: 0.35 MPa
• Max Operating Temperature: 150°C
Applications
Gas-Liquid Coalescence Filter:
• Gas drying and mist separation after air compressors
• Amine and glycol extraction towers
• Removal of lube oil mist in fuel or chemical plants
• Gas-liquid separation in compressor seal systems for stable operation
Liquid-Liquid Coalescence Filter:
• Separation of water from fuels (gasoline, aviation fuel, diesel)
• Separation of oil from quenching water
• Separation of amines from liquefied petroleum gas (LPG)
