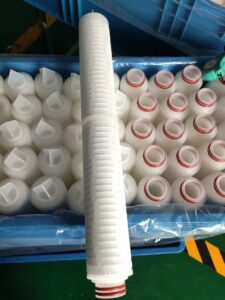

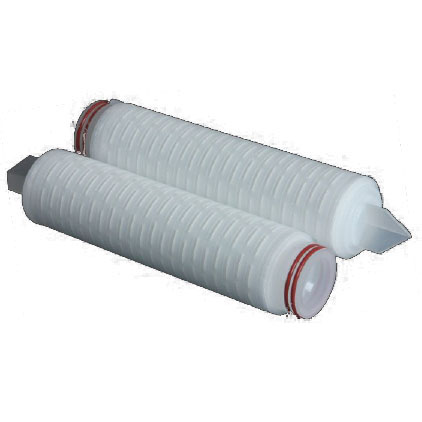

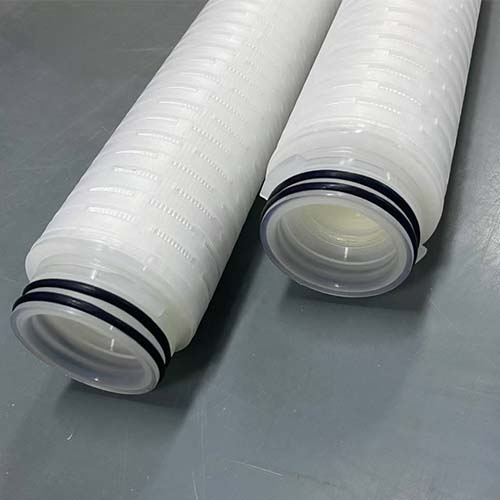

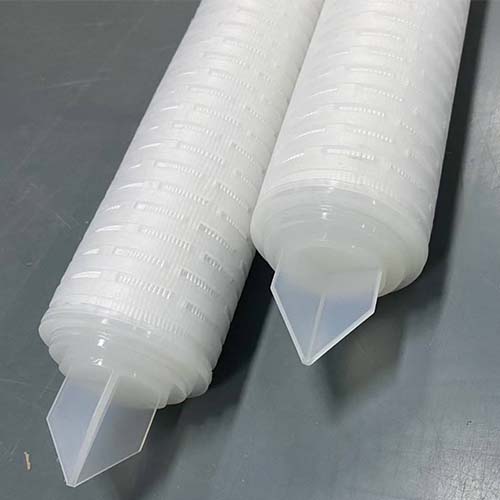

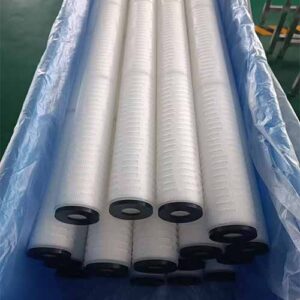

Folded Microporous Membrane Filter Cartridge
Product Overview
The folded microporous membrane filter cartridge is manufactured using superior fine fibers and non-woven fabric pleated together to form a high-precision filtration element. The shell, core, and end caps are all hot-melt welded without adhesives, ensuring leak-free performance and preventing secondary pollution.
Available in multiple media types including PP, PES, PTFE, N6, and PVDF, this folded microporous membrane filter cartridge provides excellent compatibility with a wide range of fluids and process conditions. Its uniform pore structure and high porosity guarantee reliable performance across demanding industries.
Technical Specifications
Filtration Accuracy: 0.1 μm, 0.22 μm, 0.45 μm, 1 μm, 5 μm, 10 μm, 20 μm, 30 μm, 60 μm
Sealing Material: Silicone rubber, NBR, EPDM, Fluororubber
Sealing Method: Hot melt welding
Filtration Area: 0.6 m² / 10″
Dimensions:
Inner Diameter: 28 mm
Outer Diameter: 69 mm
Length: 10″, 20″, 30″, 40″
Operating Conditions:
Max Temperature: 80°C @ 0.28 Mpa
Max Positive Differential Pressure: 0.42 Mpa
Max Negative Differential Pressure: 0.28 Mpa
Sterilization: 121°C for 30 minutes

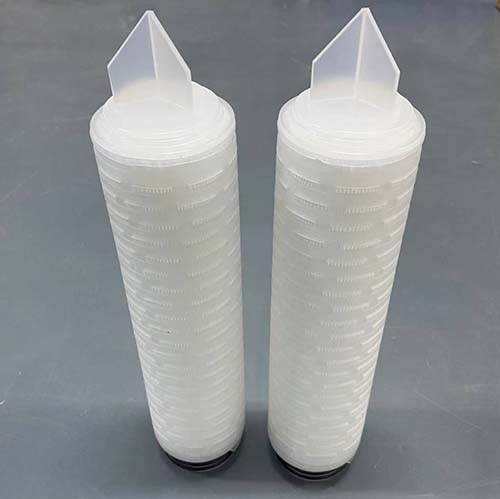

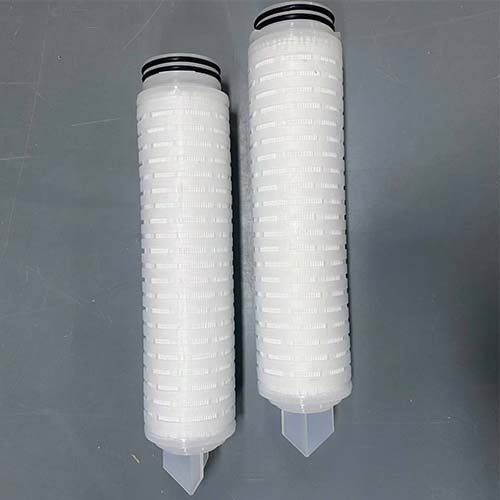

Connector Options: Flat, 222#, 226#, thread connection
Key Features
PV water-based membrane with uniform pores and high porosity
Superior flow rate and particle retention performance

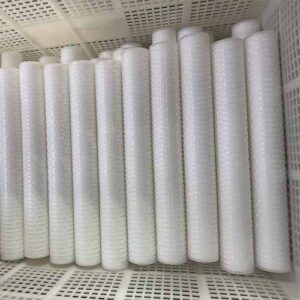

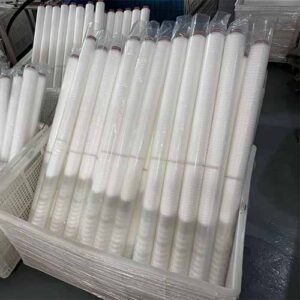

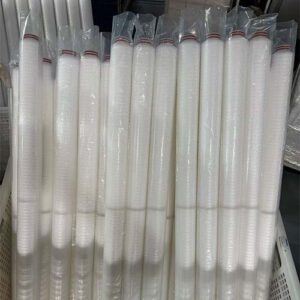

Manufactured in a dust-free facility for contamination-free production
100% factory-tested for quality assurance
Excellent resistance to temperature, acids, and alkalis
Long service life with consistent performance
Applications
Electronics Industry: Reverse osmosis prefiltration, deionized water, chemical filtration, purified water
Pharmaceutical: Medicine, biological products, plasma filtration, compressed air and gas filtration
Food & Beverage: Purified water, soft drinks, juice, wine, and beer filtration
Chemical Processing: Organic solvents, ink, and strong acid-alkali liquid filtration
Other Uses: Electroplating solutions, metal cutting fluids, photoresists, and magnetic medium filtration
