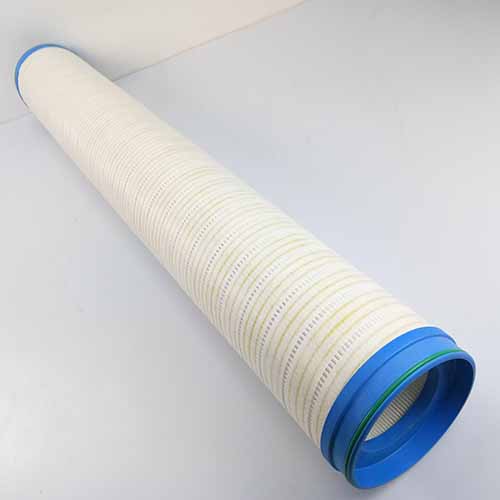

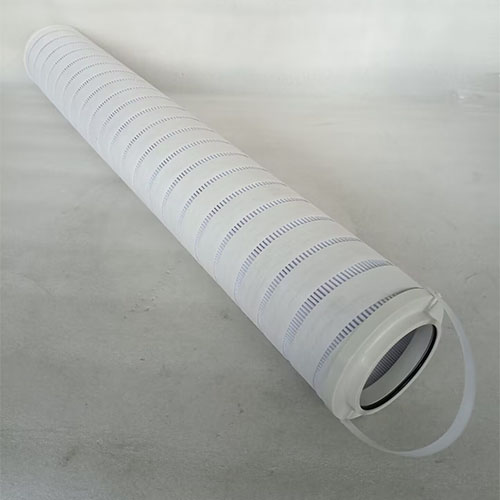

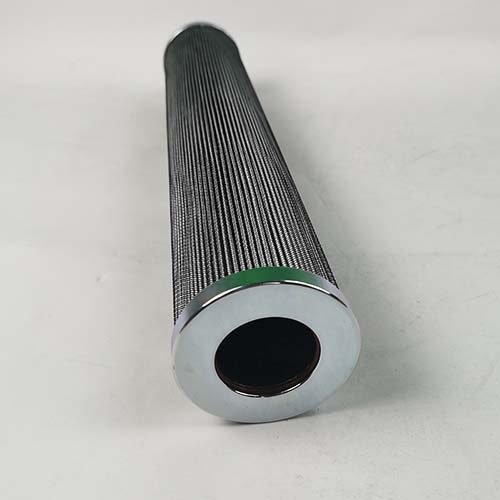

PALL hydraulic oil filter Replacement
Product Overview
Hydraulic oil filters are designed to meet the specifications of the OEM filtration media and surface area. We use high quality media for our hydraulic filter elements including cellulose fiber, micro-fiberglass, stainless steel wire cloth, and other specialty filtration medias for high pressure or special applications.
Hydraulic filter elements are used to remove contamination from a lube oil or hydraulic fluid system. These hydraulic filters deliver the highest level of fluid cleanliness, reducing operating costs and preventing failures. Our hydraulic filter cartridges are tough enough to hold their shape under pressure and maintain consistent pressure differentials, preventing filter collapse.
The PALL hydraulic oil filter replacement is made from high-quality materials such as fiberglass filter paper, cellulose fiber (wood pulp), stainless steel wire mesh, etc. Using advanced pleating and bonding processes, this filter provides high filtration efficiency, large dirt-holding capacity, precise filtration, and cost-effective performance.
Our PALL hydraulic oil filter replacement is fully interchangeable with PALL original hydraulic oil filters, delivering reliable performance at a fraction of the cost. Some models can be cleaned and reused, making them an ideal choice for the hydraulic and lubrication systems of various industrial applications.
Technical Specifications
Filtration Medium: Inorganic fibers impregnated and bonded with epoxy resins.
Construction: Filter elements with cores – corrosion protected end caps and core; Coreless filter elements – polymer end caps
Filter Type: Mesh type, slot type, pleated type, sintered type
Installation Location: Oil suction line, pipeline, return line, or pump inlet
Filtration Precision: 1 to 200 μm
Beta x(c) >= 1000, Beta x(c) >= 2000 particle removal efficiencies per ISO16889
Lengths: 76.2 mm (3 in.) to 1016 mm (40 in.)
Maximum Allowable Working Pressures: 10 bar, 28 bar, 250 bar, 420 bar
Temperature Range:
Fluorocarbon: -29°C to +120°C , Nitrile: -43°C to +120°C
Warranty Information
We guarantee our PALL filter replacement will meet or exceed the specifications, performance, and warranty of the Pall OEM hydraulic filter cartridge.
Applications
Our PALL hydraulic oil filter Replacement offer excellent performance over a wide range of pressures and flows at affordable costs. These elements help in improving filter life and can be used in applications involving:
• Heavy lubrication
• System and equipment protection
• Material handling
• Auto painting/coating zinc phosphate bath
• Mining equipment gear case
• Mining equipment hydraulic fluid
• Mining equipment lube oil – on and off-board
• Mining final product (post smelt/burn off impurities)
• Coolants/bearing lubrication
• Drives gearbox and roll housing
• Forging/extrusion
• Quenching/cleaning,
• Roll bite (safety filter)
• Mobile OEM (on-highway and off-highway) filtration solutions
Extended filter models
HC9801FDP4H HC9400FKP13H HC8904FKP13H HC8500FKP8H
HC9801FDP8H HC9400FKP26H HC8904FKP16H HC8500FKP13H
HC9801FDP13H HC9400FKN13H HC8904FKP26H HC8500FKP26H
HC9801FDT4H HC9400FKN26H HC8904FKP39H HC8500FKN8H
HC9801FDT8H HC9400FKS13H HC8904FKN13H HC8500FKN13H
HC9801FDT13H HC9400FKS26H HC8904FKN16H HC8500FKN26H
HC9800FKP4H HC9400FKT26H HC8904FKN39H HC8500FKS13H
HC9800FKN4H HC9100FKP4H HC8904FKS16H HC8500FKT8H
HC9800FKN8H HC9100FKP8H HC8904FKS26H HC8500FKT13H
HC9800FKS4H HC9100FKP13H HC8904FKS39H HC8500FKT26H
HC9800FKS8H HC9100FKN8H HC8904FKT16H HC8400FKP8H
HC9800FKT8H HC9100FKN13H HC8904FKT26H HC8400FKP16H
HC9600FKZ8H HC9100FKS13H HC8900FKP8H HC8400FKN8H
HC9600FKZ13H HC9100FKS4H HC8900FKP13H HC8400FKN16H
HC9600FKZ16H HC9100FKT8H HC8900FKP16H HC8400FKN26H
HC9600FKP4H HC9100FKT13H HC8900FKP26H HC8400FKN39H
Please feel free to contact us for a quote today.
