Product overview

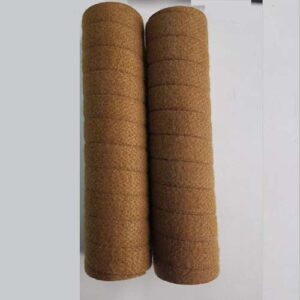

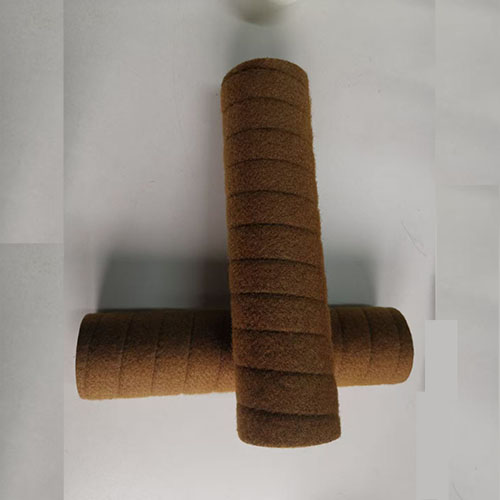

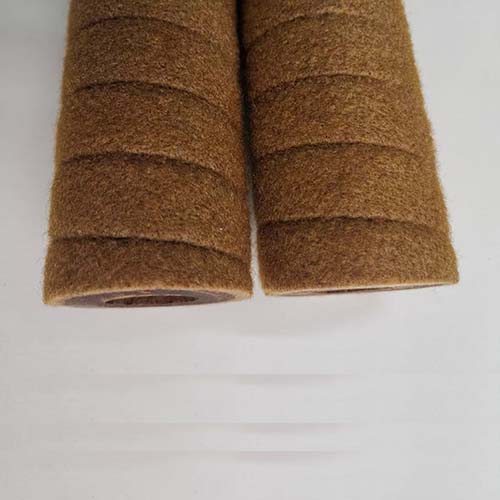

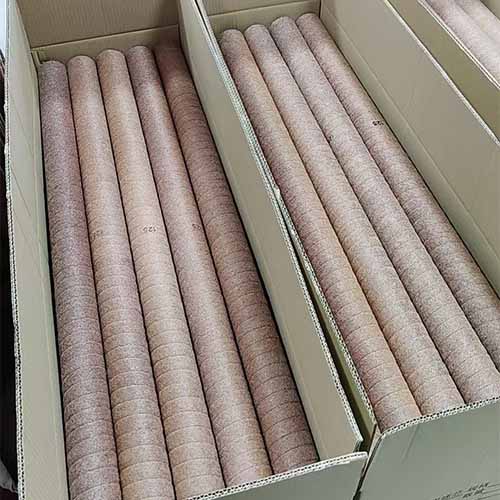

The spiral resin-bonded filter cartridge features a unique multilayer filtration structure that ensures strong contaminant retention and long service life. It is an equivalent or alternative filter for Parker ProBond Resin Bonded Filter Cartridges. Its spiral pre-filter outer layer enhances mechanical strength and eliminates loose debris often caused by weak bonding in conventional resin filters. Manufactured under computer-controlled production and strict quality management, it guarantees consistent filtration precision and reliable performance that meet customer requirements.
Technical Specifications
Length 10″, 20″, 30″, 40″S
Filtration Rating 2 μm, 5 μm, 10 μm, 25 μm, 50 μm, 75 μm, 125 μm, 150 μm
Outer Diameter 65 ± 1 mm
Inner Diameter 28 mm
Max Operating Temperature 121 °C
Operational pH range: 5-9
Filter Media: Resin-impregnated polyester filament fiber
Type of Construction
Coreless, one-piece, rigid resin bonded fibrous matrix
Key Features
- High-strength spiral bonded structure with superior dirt retention
- Designed for high-viscosity fluids and demanding chemical environments
- Consistent filtration with high flow rate and low pressure drop
- Silicone-free, ensuring contamination-free performance
- Crushable, frameless design for easy disposal
- Long service life and reduced maintenance frequency
Chemical & Environmental Compatibility
- Nonhazardous and environmentally safe
- Incinerable, crushable, and shreddable
- Certified silicone-free
- Suitable for weak acids and bases (pH 5–9)
- Not suitable for oxidizing agents
- Not recommended for FDA or food-grade applications
Applications
The Spiral Resin-Bonded Filter Cartridge is widely used in:
- Paint and Coating Filtration
- Printing Ink Filtration
- Adhesive and Resin Filtration
- Emulsion and Chemical Coating Filtration
- Organic Solvent and Plasticizer Filtration
- Wax and Oil Filtration
- Petroleum and Gas Industry Fluid Filtration
