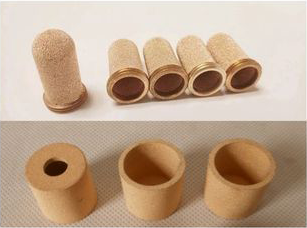

Sintered Copper Filter Element: Benefits & Applications
The sintered copper filter element is a highly reliable porous metal filtration component widely used in industrial filtration, gas purification, and pneumatic systems. It is manufactured by sintering copper or bronze powder at temperatures below the melting point, allowing the particles to bond together and form a rigid porous structure with controlled pore sizes.
This advanced manufacturing process creates a strong, permeable, and durable filter that allows fluids or gases to pass while effectively trapping contaminants. Because of its excellent mechanical strength, corrosion resistance, and stable filtration performance, the sintered copper filter element is widely used in hydraulic systems, compressed air equipment, chemical processing, and gas diffusion applications.
Structure of Sintered Copper Filter Element
The sintered copper filter element features a three-dimensional interconnected porous structure formed by bonded copper particles. During sintering, the copper particles fuse at their contact points, creating a rigid framework while maintaining open pore channels throughout the material.
This structure forms a continuous network of tortuous flow paths rather than straight openings. As fluid passes through these paths, contaminants are captured efficiently. The pore size and filtration accuracy can be precisely controlled by adjusting the copper powder particle size and sintering conditions. Typical filtration ratings range from 1 μm to 100 μm.
This stable and rigid structure ensures reliable filtration performance even under pressure fluctuations and harsh operating conditions.
Working Principle: Depth Filtration Mechanism
The sintered copper filter element operates based on depth filtration. When contaminated fluid or gas enters the filter, larger particles are intercepted at the pore entrance, while smaller particles travel deeper into the porous structure.
As the fluid flows through the tortuous channels, particles are captured through multiple mechanisms including direct interception, inertial collision, diffusion, and surface adhesion. Once trapped, these particles remain inside the porous network, allowing clean fluid to exit.
This multi-layer capture mechanism allows the sintered copper filter element to provide high filtration efficiency, large contaminant holding capacity, and stable performance over time.
Key Advantages of Sintered Copper Filter Element
One of the major advantages of the sintered copper filter element is its high porosity and large contaminant holding capacity. The three-dimensional porous structure allows the filter to capture a large amount of contaminants while maintaining stable flow.
The sintered metal structure provides excellent mechanical strength and pressure resistance, allowing reliable operation in high-pressure systems such as hydraulic and pneumatic equipment. Copper and bronze materials also offer good corrosion resistance and thermal conductivity, making the filter suitable for high-temperature and chemically aggressive environments.
Unlike disposable filters, sintered copper filter elements can be cleaned and reused using backflushing, ultrasonic cleaning, or solvent cleaning, significantly reducing operating costs.
Additionally, due to its porous structure, the sintered copper filter element can also function as a gas diffuser, silencer, or flame-blocking component in gas systems.
Why Choose Sintered Copper Filter Element Instead of Other Filter Materials
Compared with other sintered metal filters, the sintered copper filter element offers unique advantages in gas filtration and pneumatic applications.
Copper’s excellent thermal conductivity allows efficient heat dissipation, improving performance in compressed air and gas systems. The porous structure also provides effective noise reduction, making it ideal for pneumatic silencers.
In gas diffusion applications, the sintered copper filter element produces uniform gas distribution, improving efficiency in chemical processing, aeration, and gas sparging systems.
Its balance of performance, durability, and cost makes it a practical and economical solution for many industrial filtration systems.
Available Forms and Connection Types
Sintered copper filter elements can be manufactured in various shapes and sizes to fit different equipment and system requirements.
Common forms include cylindrical cartridges, tubes, discs, cones, and custom designs. Connection types include threaded connections, flange connections, press-fit designs, and other customized mounting options.
These flexible configurations allow easy integration into hydraulic systems, pneumatic equipment, gas pipelines, and industrial filtration systems.
Typical Applications of Sintered Copper Filter Element
The sintered copper filter element is widely used across various industrial applications.
In hydraulic and lubrication systems, it removes solid particles and contaminants to protect pumps, valves, and sensitive components. In compressed air and pneumatic systems, it filters particles while also reducing exhaust noise.
In chemical and industrial gas systems, it removes solid contaminants and improves gas purity. It is also widely used in gas diffusion systems, producing uniform gas bubbles for chemical reactions and aeration processes.
Additionally, sintered copper filter elements are commonly used as silencers in pneumatic exhaust systems, improving working conditions and reducing noise levels.
Case Study: Pneumatic System Filtration and Noise Reduction
In a manufacturing facility using pneumatic control systems, sintered copper filter elements were installed at valve exhaust ports. These filters effectively removed airborne particles while reducing exhaust noise by over 20%.
As a result, the system achieved improved reliability, cleaner operating conditions, and reduced noise exposure for workers.
Why Choose FiltraMate Sintered Copper Filter Element
At FiltraMate, we manufacture high-quality sintered copper filter elements with precise pore size control, durable construction, and reliable performance. Our filters can be customized in size, filtration rating, shape, and connection type to match specific system requirements.
We also provide OEM replacement solutions compatible with major international brands, helping customers reduce costs while maintaining high filtration performance.
With strong engineering support, stable quality, and fast delivery, FiltraMate provides reliable filtration solutions for demanding industrial applications.
