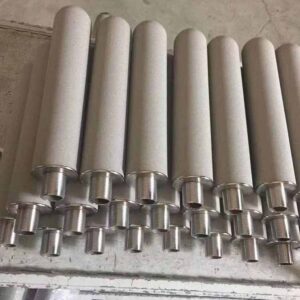

Powder Sintered Filter Elements are high-performance filtration components widely used in chemical processing, pharmaceuticals, and environmental engineering. What makes them unique is the metal powder sintering process, which creates a strong, porous, and highly precise filtration medium.
In this article, we will walk through the five key stages of the production process, from powder selection to final customization.
1. Raw Material Selection & Pretreatment
The process begins with choosing high-purity metal powders, such as: Stainless steel (316L, 304), Copper, Nickel, Tin (sometimes added to refine pore structure)
To ensure quality, powders undergo strict screening and drying, guaranteeing uniform particle size and high purity—the foundation of stable pore distribution in the final product.
2. Forming & Pressing
Two main methods are used to shape the powder into a green body (pre-sintered form):
Cold Isostatic Pressing (CIP):
Metal powder is filled into a mold and compacted under high-pressure liquid. This method ensures uniform pore size distribution and structural consistency.
High-Pressure Pressing:
Using high-pressure equipment, powders are compressed while leveraging the metal’s ductility. Micro-gaps form during pressing, and auxiliary materials (e.g., tin) are sometimes added to enhance pore precision.
3. High-Temperature Sintering
The compacted green body is placed in a vacuum furnace or protective atmosphere and heated to 1000–1500°C. Under these extreme conditions, powder particles undergo solid-phase diffusion bonding, forming a dense yet porous structure.
This step is critical—it determines the pore size, distribution, density, and mechanical strength of the filter element.
4. Surface Treatment & Optimization
After sintering, the filter elements may undergo:
Polishing – to improve smoothness and surface accuracy.
Machining – to refine dimensions and pore structure.
These treatments ensure uniform porosity, stable filtration performance, and extended service life.
5. Application-Specific Customization
The final step is tailoring the filter elements to customer requirements:
Pore size range: From submicron to hundreds of microns.
Shapes: Rod, plate, disc, or custom designs.
Applications:
Chemical industry (catalyst recovery, fluid purification)
Pharmaceutical industry (sterile filtration)
Environmental engineering (waste gas/water treatment)
This flexibility makes powder sintered filters ideal for specialized and demanding industrial environments.
Conclusion
The production of Powder Sintered Filter Elements is a precise, multi-step process combining metallurgy, high-pressure forming, and advanced heat treatment. From raw material selection to sintering and customization, each stage is carefully controlled to deliver durable, high-precision, and application-ready filters.
At FiltraMate, we specialize in manufacturing sintered metal filter elements that meet international quality standards, ensuring long service life, stable performance, and tailor-made solutions for your industrial needs.
