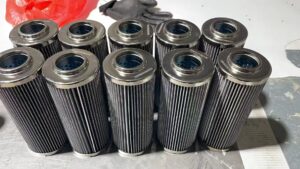

A hydraulic oil filter element is a critical component in hydraulic systems. It removes solid particles and gel like impurities from the working medium, helping to control contamination and protect equipment from premature wear. As part of the hydraulic pipeline system, it is indispensable for ensuring stable operation and reducing downtime. Proper Hydraulic Oil Filter Maintenance can extend the filters life, ensure the system operates well, so it is critical for hydraulic system.
Structure and Materials of Hydraulic Oil Filter Elements
Hydraulic oil filters are typically made from high performance filtration materials such as:
- Fiberglass filter paper
- Synthetic fiber filter paper
- Wood pulp filter paper
- Stainless steel woven mesh
- Sintered mesh and multilayer metal mesh
The number of layers and mesh size depend on specific application requirements. This versatility allows hydraulic filters to meet a wide range of industrial needs.
👉 Common applications include steel, power generation, metallurgy, shipbuilding, aviation, papermaking, chemical processing, machine tools, construction machinery, and engineering equipment.
Correct Usage of Hydraulic Oil Filter Elements
To maximize efficiency and prolong service life, follow these best practices:
1. Drain and Clean
Drain the old hydraulic oil and check the filter for metal impurities such as iron or copper.
Clean the system before adding new oil.
2. Choose the Right Oil
Always use the correct grade of hydraulic oil. Mixing different grades or brands can cause chemical reactions, producing flocculent substances that clog filters.
3. Install Before Refueling
Ensure the filter is installed before adding hydraulic oil. The filter pipe should connect directly to the main pump.
4. Avoid Air Contact
Prevent oil in the tank from direct exposure to air. After refueling, remove air from the main pump by loosening the pipe joint at the top and filling directly.
5. Regular Testing and Replacement
- Conduct oil testing regularly.
- Replace the hydraulic filter element immediately if clogged.
- Clean fuel tanks and pipelines when refueling, and always use a refueling device equipped with a filter.
Method for Replacing a Hydraulic Oil Filter Element
Follow these steps for safe and efficient replacement:
1. Close the inlet ball valve and open the upper cover.
2. Unscrew the drain plug to remove dirty oil completely.
3. Loosen the fastening nut and carefully remove the old filter element with protective gloves.
4. Insert the new filter element, replace the sealing ring, and tighten the nut.
5. Close the drain valve, reinstall the cover, and secure the fastening bolts.
6. Tighten the drain plug and check for any leaks.
Factors Affecting Service Life
Several factors determine how long a hydraulic oil filter element can perform effectively:
Hydraulic Oil Pollution Level
Contaminated oil increases the filter’s workload, accelerating clogging and reducing lifespan. Prevent contamination by controlling system entry points.
Hydraulic Oil Quality
Maintaining the correct cleanliness level is vital. Poor oil quality causes premature wear, reduces system efficiency, and shortens both filter and equipment life.
Conclusion
Hydraulic oil filter maintenance is crucial for achieving long lasting hydraulic system performance. By selecting high quality materials, following correct usage procedures, and scheduling timely replacements, you can ensure better equipment protection, lower maintenance costs, and extended service life for your machinery. Follow us for more knowledge on Hydraulic oil filter maintenance.
