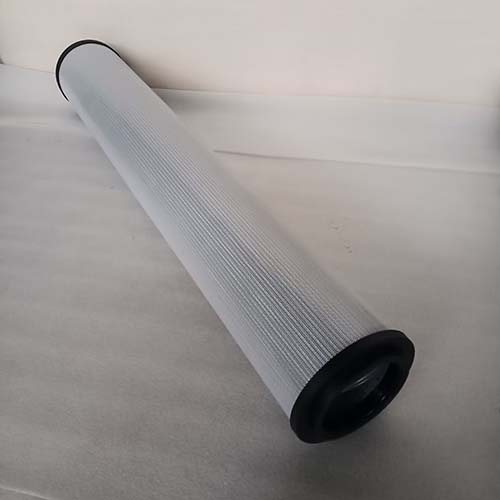

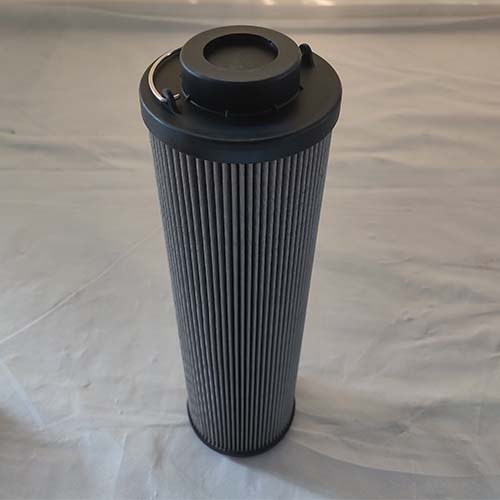

Replacement HYDAC hydraulic oil filter element
Product Overview
The Hydraulic Oil Filter Element is a high-performance replacement for HYDAC hydraulic and lubrication oil filters, designed to remove metal particles and mechanical impurities from oil pipelines. Installed in hydraulic or lubrication systems, it helps extend equipment service life, reduce wear, and maintain oil purity.
This filter is widely used in petrochemical, chemical, power generation, and machinery industries, where reliability and clean operation are critical.
Technical Specifications
Filtration Accuracy: 3–200 μm
Maximum Operating Temperature: 150 °C
Maximum Differential Pressure: 2 MPa
Filter Material: Glass fiber, stainless steel woven mesh, wood pulp paper
Key Features
Composite filter design for high filtration accuracy
Large dirt-holding capacity and longer service life
Corrosion- and pressure-resistant for demanding applications
High flow rate per unit area, improving filtration efficiency
Stainless steel woven mesh construction, uniform pores, high strength, and easy to clean
Applications
Petroleum and petrochemical plants – oil purification and system protection
Chemical industry – filtration of process liquids and lubricants
Power plants – hydraulic oil and turbine lubrication filtration
Mining and heavy machinery – equipment oil cleaning and protection
Pharmaceutical and food industry – clean hydraulic oil systems
