CJC Filtration for Cement Plants: Solving Oil Contamination
In the cement industry, maintaining stable production while controlling costs is a constant challenge.
With increasing pressure on operational efficiency, reducing downtime and extending equipment life have become top priorities.
One critical but often underestimated factor is oil contamination in lubrication and hydraulic systems.
⚠️ The Root Cause of Equipment Failure: Oil Contamination
Industry data shows that:
👉 Up to 80% of equipment downtime and maintenance issues are caused by oil contamination
In cement plants, oils such as:
Hydraulic oil
Gear oil
Lubrication oil
carry harmful contaminants throughout the system, including:
Solid particles (dust, wear debris)
Corrosive deposits
Water contamination
These contaminants lead to:
Bearing damage
Hydraulic system failures
Gear wear and reduced efficiency

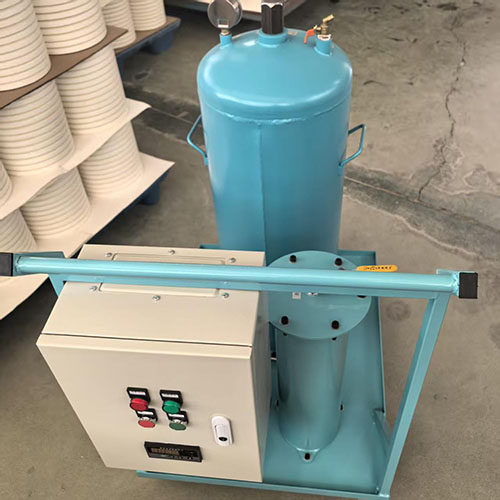

🔧 The Solution: CJC Offline Oil Filtration System
To address these challenges, many cement plants are adopting:

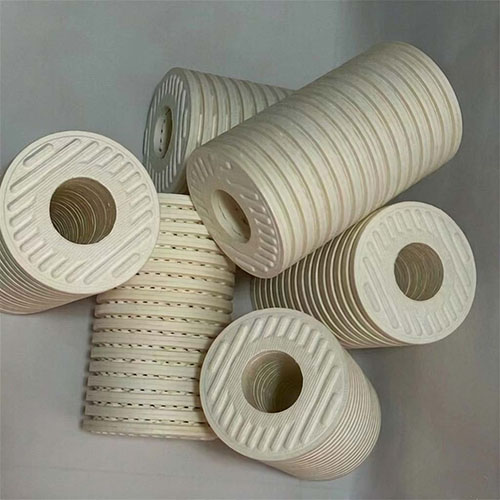

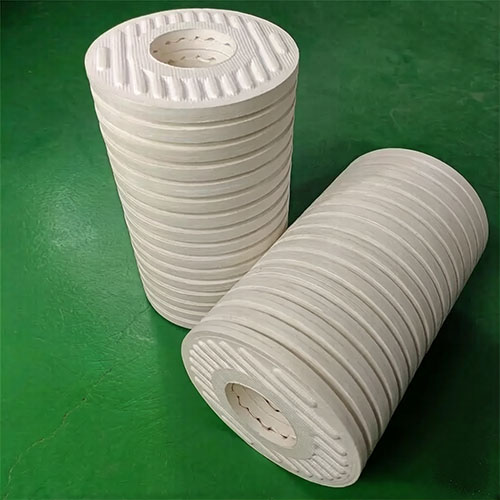

👉 CJC offline filtration systems using cellulose filter inserts
These systems are designed for:
Hydraulic oil filtration
Gear oil filtration
Turbine oil filtration
Unlike inline filters, offline (bypass) filtration continuously cleans the oil, removing fine particles and controlling oil degradation.
📊 Real Application Cases
Case 1: High Contamination System Improvement
In a cement grinding system:
Oil type: 460# industrial gear oil
Initial contamination level: above NAS 16
Severe bearing wear observed
Results after CJC filtration:
After two filtration cycles:
✔ Over 90% of contaminants removed ✔ Cleanliness improved from >NAS 16 → NAS 11 ✔ Oil condition returned to acceptable levels
👉 After just 1 day of operation:
Oil degradation was controlled
Equipment wear was significantly reduced
Case 2: High-Performance System Optimization

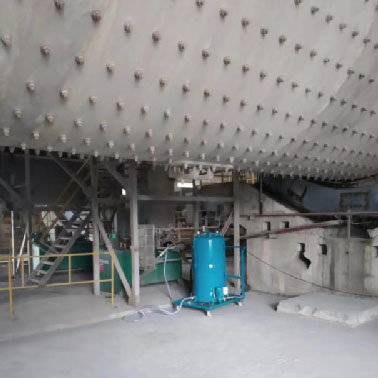

In another cement mill main gearbox system:
• Initial cleanliness level: NAS 13 (already considered good in the industry)
After installing a CJC offline filtration system (HDU series):
✔ Oil cleanliness improved to NAS 4
What does this mean?
Achieved ultra-clean oil condition
Suitable for almost all industrial applications
Typically only possible in well-sealed, high-performance systems
👉 This proves that:
CJC filtration not only solves contamination problems—but also significantly elevates system performance.
🚀 Key Benefits for Cement Plants
Implementing CJC oil filtration solutions provides:
✔ Improved Equipment Reliability
Reduced wear and longer service life for bearings and gears
✔ Reduced Downtime
Fewer failures caused by oil contamination
✔ Lower Maintenance Costs
Extended oil life and reduced oil replacement frequency
✔ Increased Production Efficiency
Less downtime, higher equipment availability
🔍 Conclusion
In harsh environments like cement plants—characterized by high dust and heavy loads—
👉 Oil contamination control is critical to equipment reliability
Traditional filtration systems are often insufficient for removing fine particles.
👉 CJC offline filtration with cellulose filter inserts offers a highly effective solution for:
Fine particle removal
Oil cleanliness improvement
Long-term system protection
It not only solves existing problems—but also helps elevate overall system performance.
🤝 Extended Applications
This solution is also widely applicable in:
Mining equipment
Steel plants
Heavy industrial lubrication systems
At FiltraMate, we provide:
CJC filter system replacement solutions
Alternative cellulose filter inserts across multiple series
Technical support for oil filtration optimization
Helping customers:
👉 Reduce costs, improve reliability, and increase operational efficiency
