Offline Filtration vs Inline Filtration: What's the difference

In industrial applications, both inline filtration and offline filtration are widely used for contamination control. Understanding how they work — and when to use them — is essential for improving hydraulic oil cleanliness, reducing component wear, and extending equipment life.

1. What Is Inline Filtration?

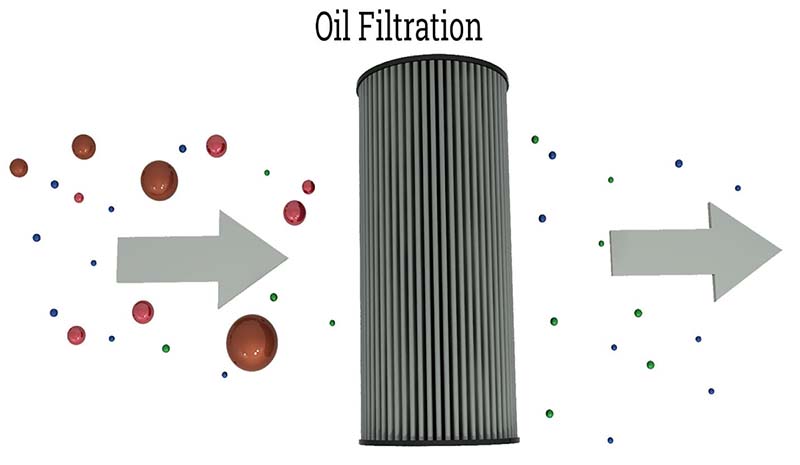

Inline filtration refers to filters installed directly in the hydraulic or lubrication oil flow path. During normal system operation, oil passes through the filter to protect pumps, valves, and other critical components from contamination.

Common inline filters include:

Suction filters

Pressure-line filters

Return-line filters

If you want to know the difference between Suction filters, Pressure-line filters and Return-line filters, please read:

Suction Filter vs Return Filter in Hydraulics: Key Differences Explained

Pressure-Line Filter vs Return-Line Filter: What’s the Difference

Because inline filters operate within the main system circulation, their filtration performance is often limited by:

System pressure

Flow rate

Pressure drop requirements

As a result, inline filtration mainly focuses on protecting system components during operation.

2. What Is Offline Filtration?

Offline filtration, also known as kidney loop filtration or bypass filtration, operates independently from the main hydraulic or lubrication system.

Instead of filtering the full system flow, it continuously circulates oil from the reservoir through a dedicated fine filtration unit and returns clean oil back to the tank.

Because offline filtration is not directly affected by pressure and flow fluctuations, it allows:

Ultra-fine filtration

Better contamination removal

Lower ISO cleanliness codes

Longer oil service life

Offline filtration is widely used in:

Hydraulic systems

Gearbox lubrication systems

Turbine oil systems

Industrial lubrication applications

where long-term oil cleanliness is critical.

3. Why Inline Filters Alone Are Often Insufficient

Inline filters are essential for protecting hydraulic and lubrication systems. However, in many industrial applications, inline filtration alone is not enough to achieve long-term oil cleanliness targets.

Because inline filters must handle full system flow and operating pressure, their filtration capability is limited by:

• Pressure drop requirements

• Flow stability

• System operating conditions

As a result, very small contamination particles — especially particles below 10 microns — can remain in the oil circulation system.

Over time, these fine particles, oxidation products, and varnish can still cause:

• Component wear

• Valve sticking

• Reduced equipment reliability

• Shorter oil life

This is why many high-reliability hydraulic and lubrication systems combine inline filtration with offline fine filtration.

👉 Inline filtration protects the system. 👉 Offline filtration improves oil cleanliness.

4. Advantages of Offline Filtration

Compared with inline filtration, offline filtration provides a more stable and efficient way to improve long-term oil cleanliness.

Because the filtration process operates independently from the main system flow, offline filtration allows the use of ultra-fine filter media and deeper filtration technologies.

Key advantages include:

• Better removal of fine contamination particles

• Lower ISO cleanliness codes

• Reduced component wear

• Extended oil and filter service life

• Improved equipment reliability

• Lower maintenance and oil replacement costs

Offline filtration is especially effective in systems where oil cleanliness directly affects equipment reliability and service life.

In many industrial applications, offline filtration has become an important part of modern oil cleanliness management strategies.

5. Improving Oil Cleanliness with the Right Filtration Strategy

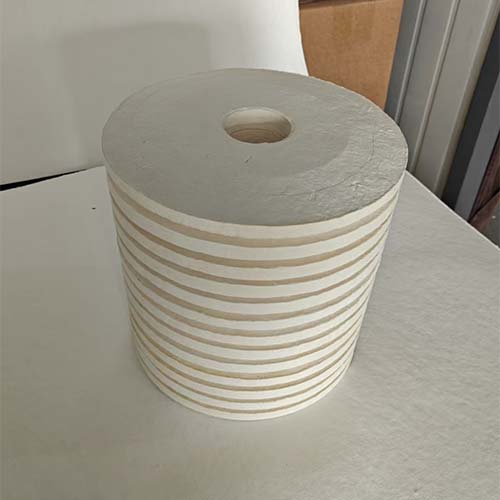

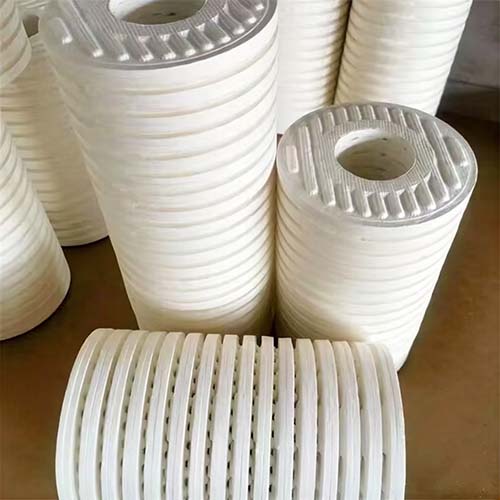

At FiltraMate, we provide high-quality replacement filters compatible with original CJC fine filtration systems. Our cellulose filter inserts are designed to achieve filtration performance close to OEM standards and can be directly used as replacements for original CJC filter elements.

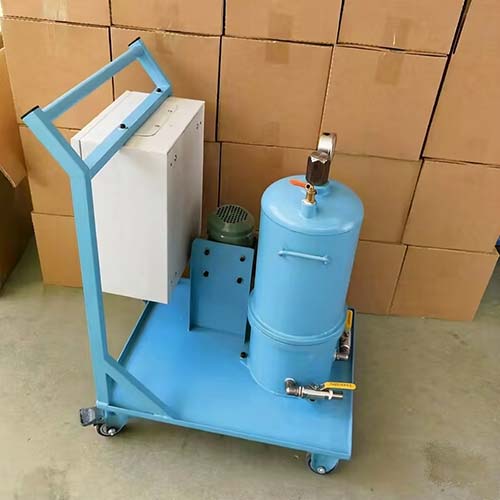

We supply HDU series offline fine filters and replacement CJC filter inserts for multiple CJC series, including:

• B Series: B 15/12, B 15/25, B 15/50, B 27/27

• A Series: A 15/25, A 27/27, A 38/20

• F, BG, BLA, BLAT, VRi Series fine filter elements

• Other customized offline filtration filter inserts

Please feel free to contact us for a quote today. Email: [email protected] WhatsApp: +86 133 4666 0396
